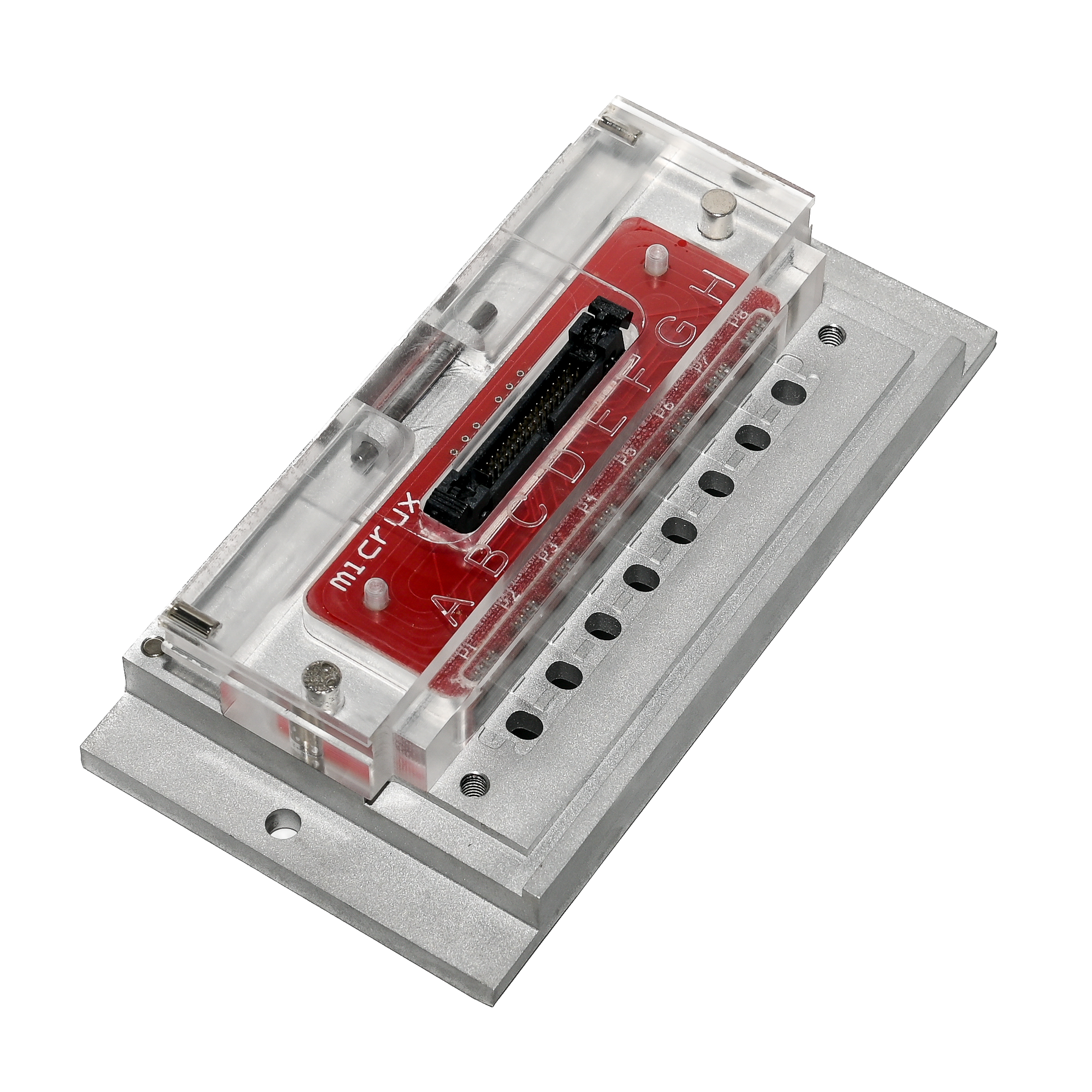

Multi8x All-In-One Platform

The Multi8x All-In-One (AIO) platform offers a multiplexing interface with interchangeable movable add-ons.  The Multi8x AIO platform enables the use of up to 8 thin-film (micro)electrodes in either static (Drop/Batch cell) or dynamic (Flow cell) mode, enabling a multiplexed detection system for various analytical applications.

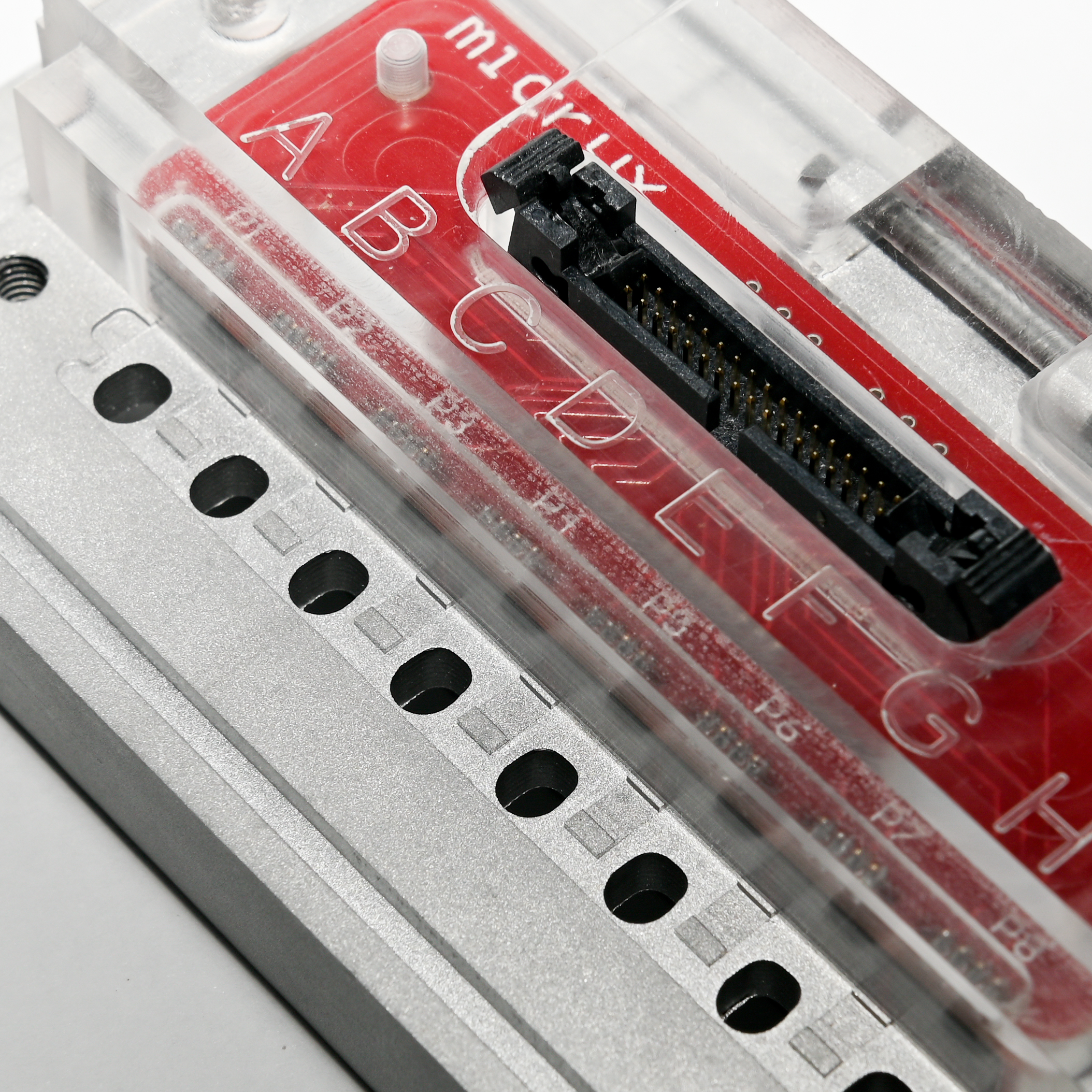

• User-friendly and robust interface for connecting thin-film electrodes to instrumentation.
• Supports the use of up to 8 standard thin-film electrodes, either individually or simultaneously.
• Allows for sample volumes of 1 to 10 µL per cell.

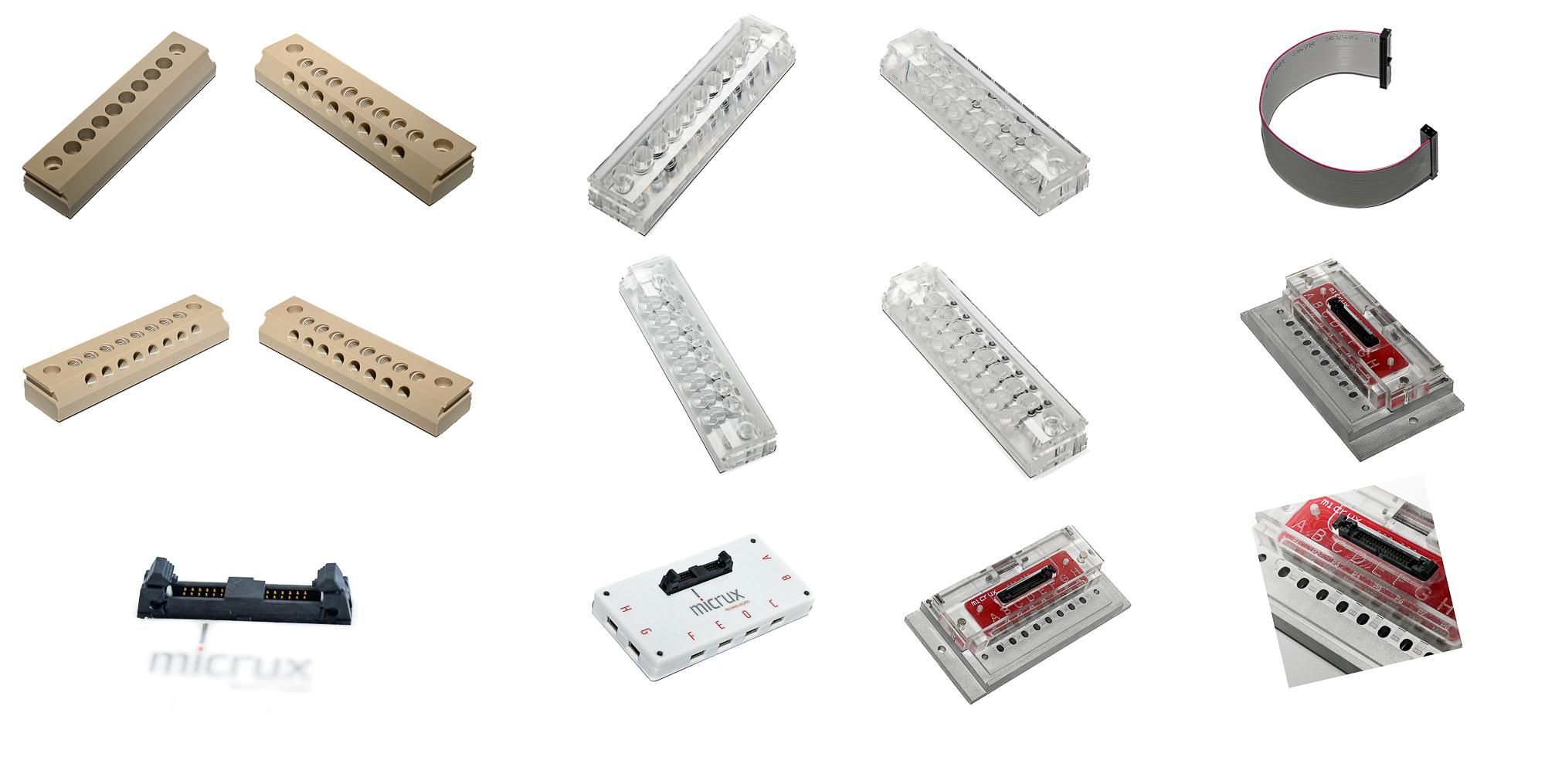

• Includes basic assembly parts (with screws) for various add-ons.
• Quick and easy replacement of electrodes and add-ons.

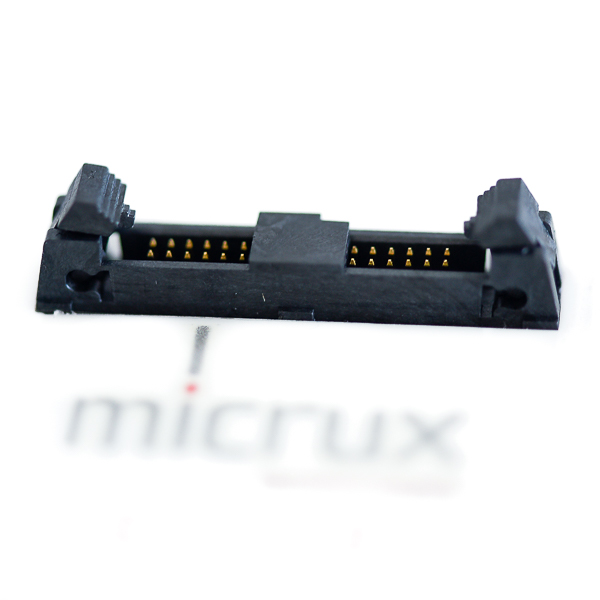

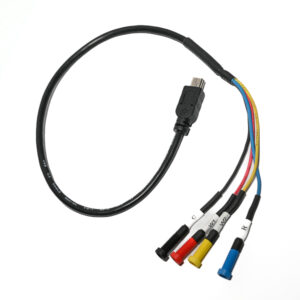

The AIO Multi8x platform includes a miniUSB box, an IDC connector, and universal cables for individual connection of the 8 cells with any commercial (multi)potentiostat. The cables are available with two terminal options to better meet the requirements of any instrumentation:

• 2-mm female banana plugs (includes male adapter).
• 2-mm male banana plugs (includes crocodile clips).
