ECStat Electochemical Station

SKU: ECSTAT2020 Category:

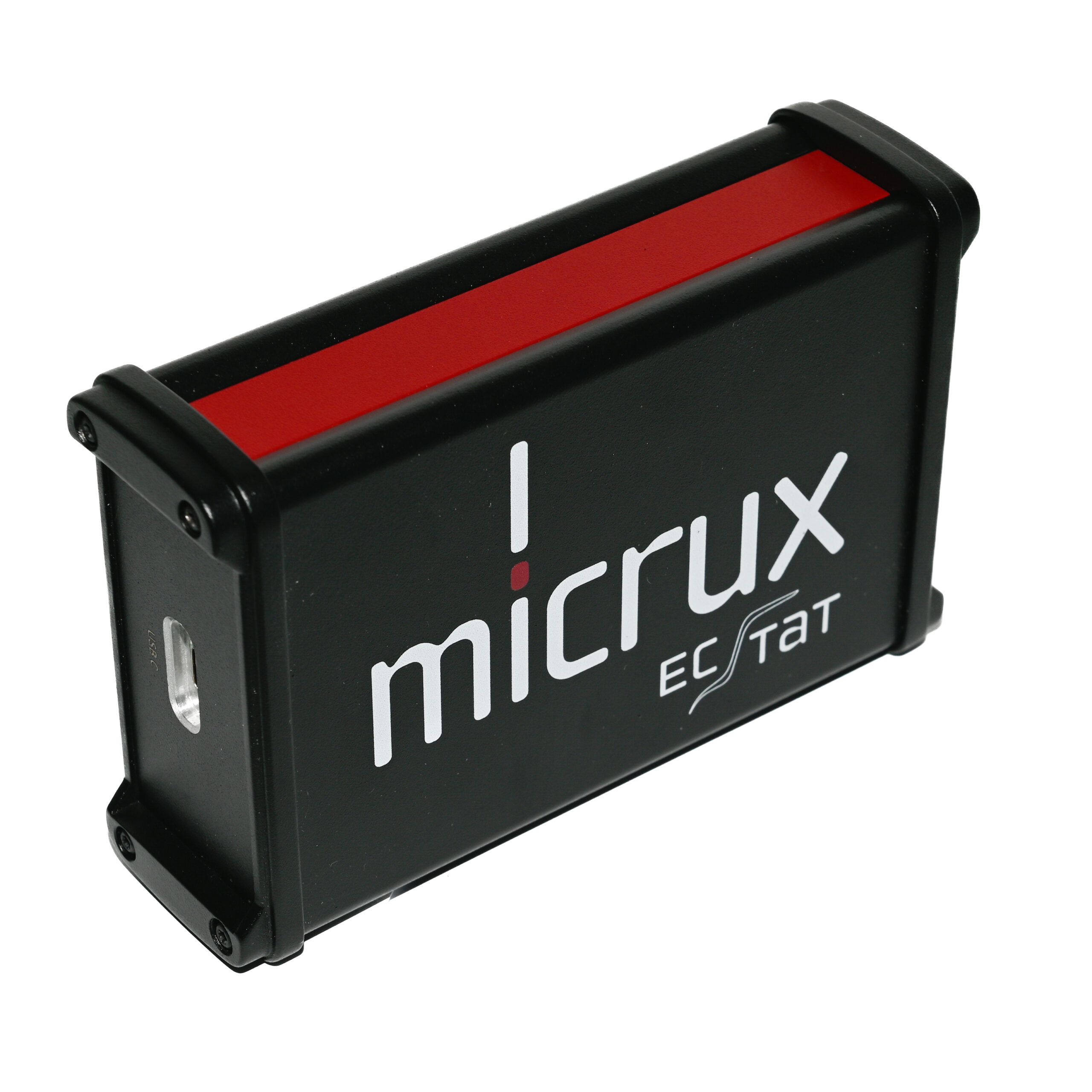

MicruX ECStat is a USB-powered All-in-One Electrochemical Workstation, including a Bipotentiostat/Galvanostat with a built-in Impedance Analyzer, in a very compact and portable equipment.

  • Dimensions: 160 x 100 x 45 mm (L x W x H)
  • USB-powered / interfacing.

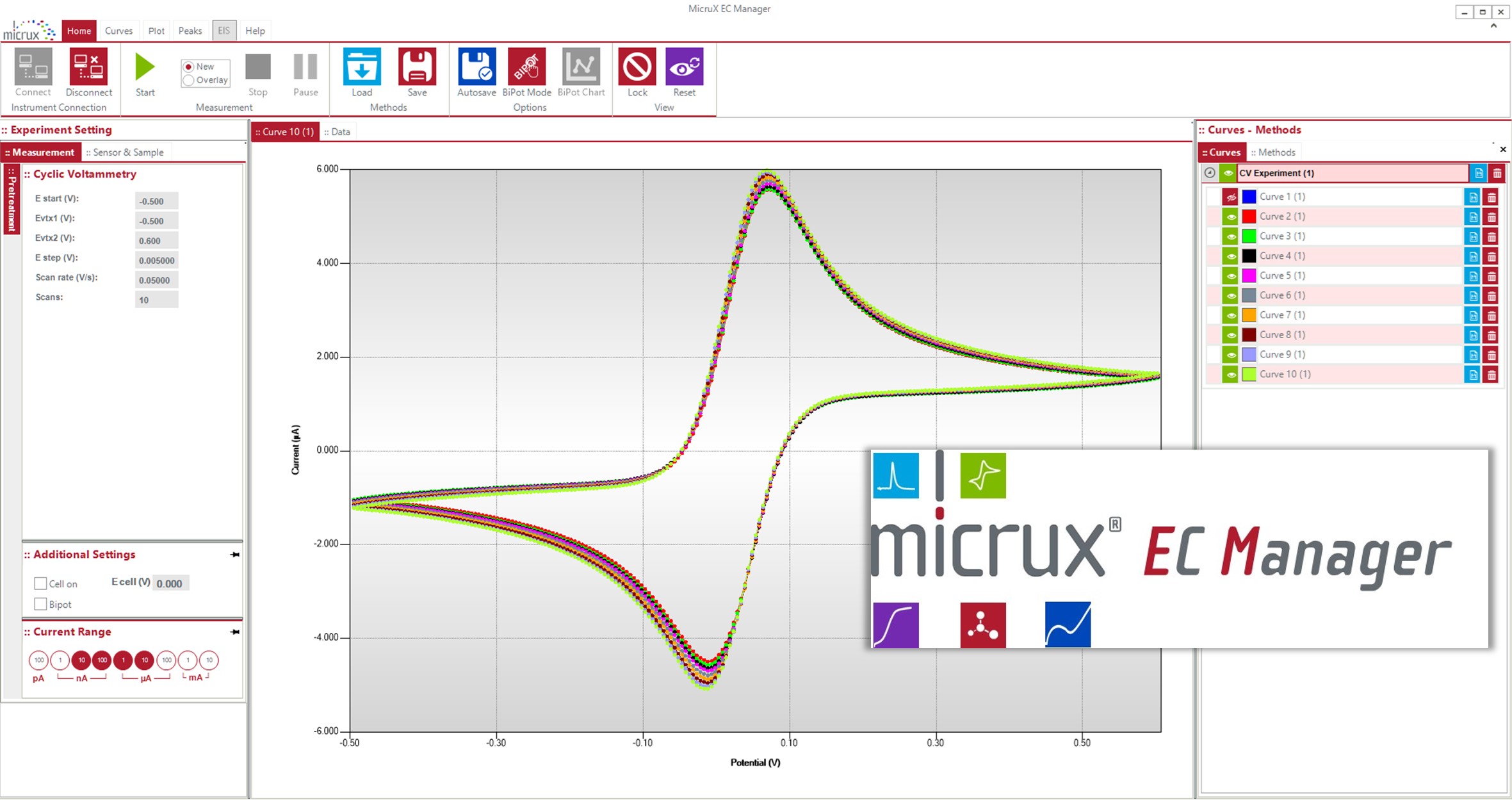

  • Control PC software – MicruX EC Manager.
  • Built-in FRA/EIS Analyzer from 10 μHz to 1 MHz
  • Current ranges: 100 pA to 10 mA (max. current: ± 30 mA)
  • Operating modes: bipotentiostat, potentiostat, ZRA, galvanostat, PEIS analyzer
  • Includes over 25 electroanalytical techniques.
  • Compatible with electrochemical platforms, thin-film electrodes, and SPEs.

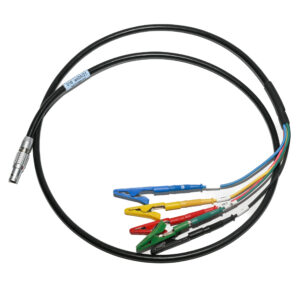

MicruX ECStat is supplied in a plastic briefcase with all necessary accessories and software for interfacing with the computer and sensors.

ECStat

MicruX ECStat includes over 25 electroanalytical techniques for voltammetric, amperometric, potentiometric, and impedance spectroscopy analysis.

AVAILABLE ELECTROCHEMICAL TECHNIQUES

Voltammetry

  • Cyclic Voltammetry (CV)
  • Fast-Scan Cyclic Voltammetry (FSCV)
  • Linear Sweep Voltammetry (LSV)
  • Differential Pulse Voltammetry (DPV)
  • Normal Pulse Voltammetry (NPV)
  • Square Wave Voltammetry (SWV)
  • Alternating Current Voltammetry (ACV)

Amperometry

  • Amperometric Detection (AD)
  • Zero Resistance Amperometry (ZRA)
  • Fast Amperometry (FA)
  • Pulsed Amperometric Detection (PAD)
  • Differential Pulse Amperometry (DPA)
  • Multi-Step Amperometry (MSA)



Potentiometry

  • Potentiometric Detection (PD)
  • Zero Current Potentiometry (ZCP)
  • Multi-Step Potentiometry (MSP)
  • Potentiometric Stripping Analysis (PSA)

Impedance

  • PEIS – Fixed Potential (PFP)
  • PEIS – Potential Sweep (PSP)
  • PEIS – Time Sweep (PTS)

Bipotentiostat

  • CV-CV / CV-AD
  • LSV-LSV / LSV-AD
  • AD-AD
  • MSA-MSA / MSA-AD

TECHNICAL SPECIFICATIONS

General
» Dimensions 160 x 100 x 45 mm (L x W x H)
» Operating Modes Bipotentiostat, potentiostat, ZRA, galvanostat, PEIS analyzer
» LED Indicators Power on, cell on
» DC Potential Range ± 10 V
» Compliance Voltage ± 10 V
» Maximum DC Current ± 30 mA

Potentiostat
» Applied DC-potential Resolution 75 µV
» Applied Potential Accuracy ≤ 0.1% ± 1 mV offset
» Current Ranges 100 pA to 10 mA (9 ranges)
» Current Accuracy ≤ 0.1 % (at Full Scale Range)
» Measured Current Resolution 0.006% of current range (5 fA on 100 pA range)

Galvanostat
» Current Ranges 1 nA to 10 mA (8 ranges)
» Applied DC-current Range ± 6 times applied current range
» Applied DC-current Resolution 0.005 % of applied current range
» Measured Potential Accuracy 75 μV at ± 10 V
7.5 μV at ± 1 V
0.75 μV at ± 0.1 V

EIS (Impedance Analyzer)
» Frequency Range 10 μHz to 1 MHz
» EIS – AC Amplitude Range 1 mV to 250 mV rms, or 0.6 V p-p

Other Specifications
» Housing Aluminum case
» Weight 0.5 Kg
» Temperature Range 0 ºC to + 50 ºC
» Power Supply USB power supply
» Comm. Interface USB-C
» Certifications CE
