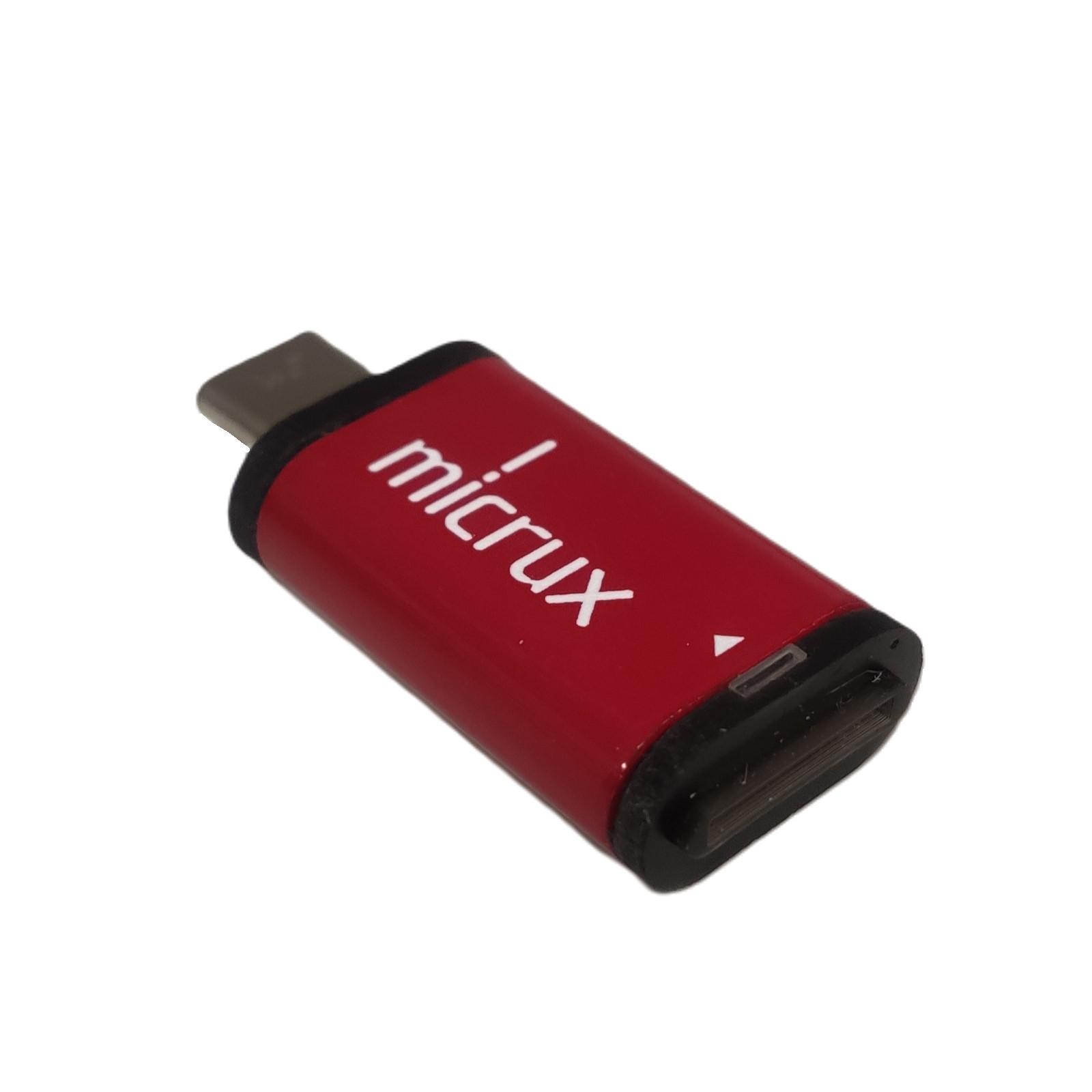

ECSens BIPOT Electrochemical Sensing Interface
MicruX ECSens is an ultra-compact and affordable Bipotentiostat, ideal for starting electrochemical studies with the most common electroanalytical techniques, enabling in-situ voltammetric and amperometric analyses.

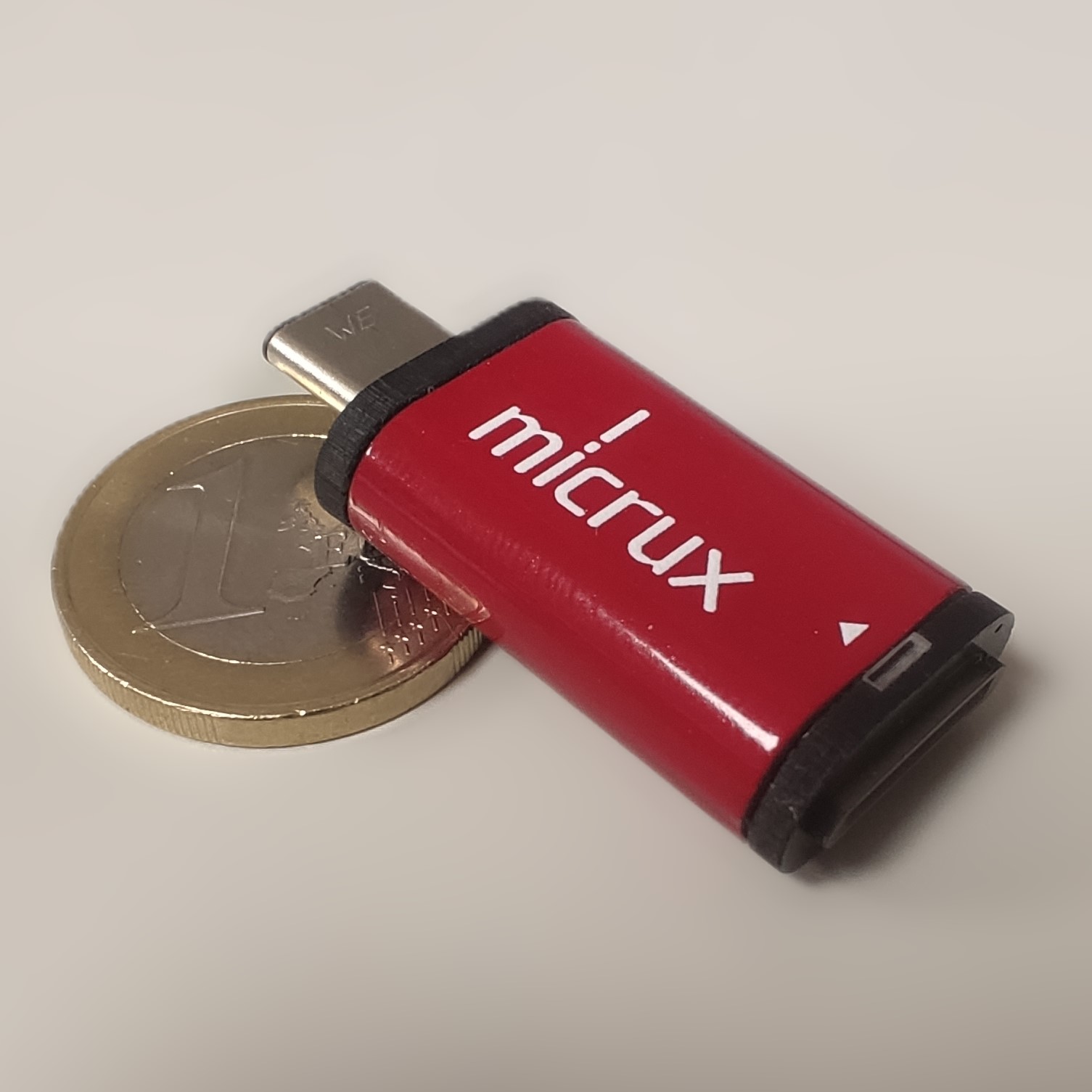

- Dimensions: 39 x 17 x 9 mm (L x W x H).
- USB-powered / interfacing.
- Control PC software – MicruX EC Manager LITE.
- Potential range: ± 1.5 V
- Current ranges: 0.25 µA to 12.5 mA (max current: ± 5 mA).
- Operating modes: bipotentiostat / potentiostat (multi-channel mode available)

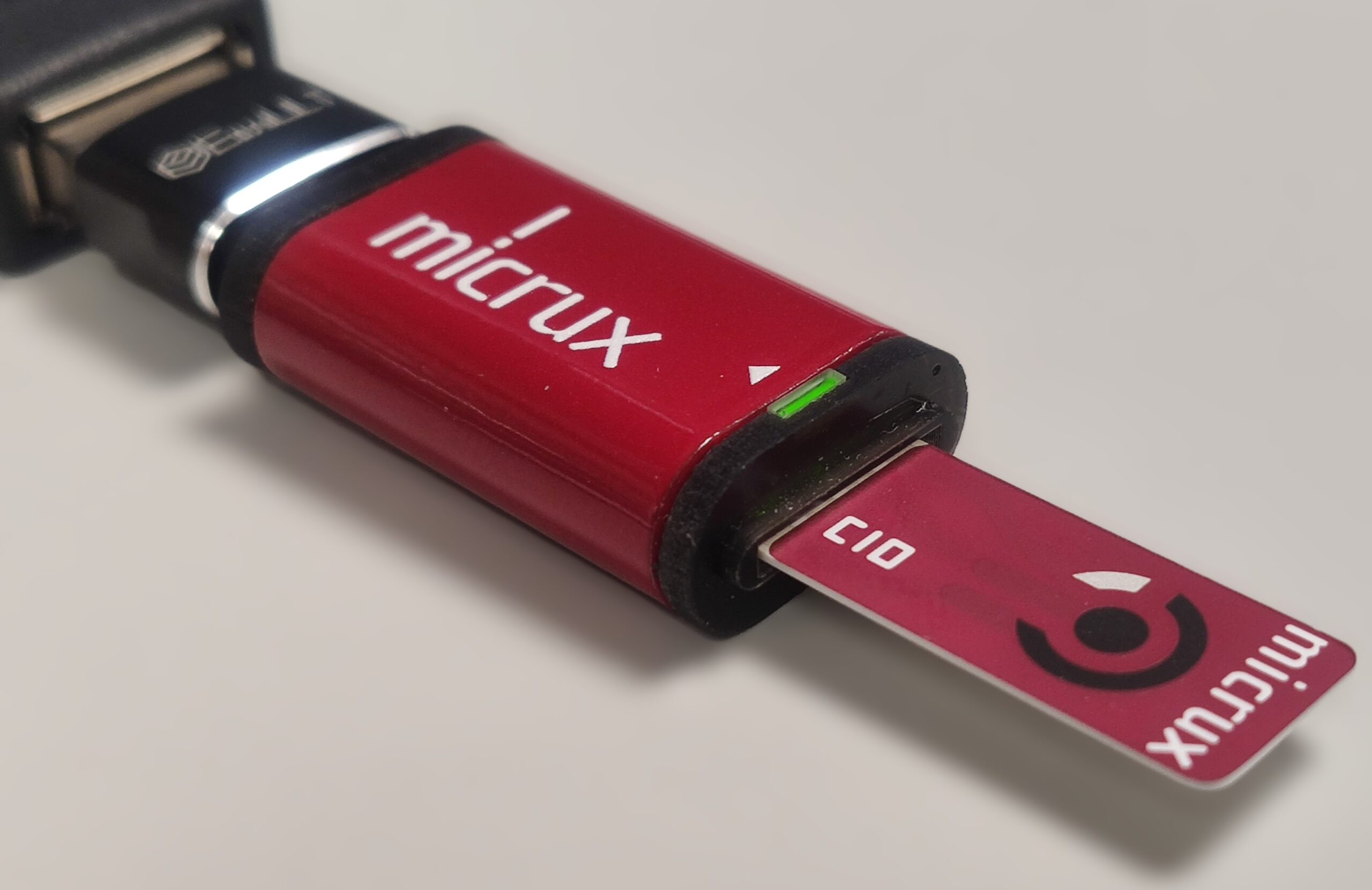

- Compatible with screen-printed electrodes (SPE).

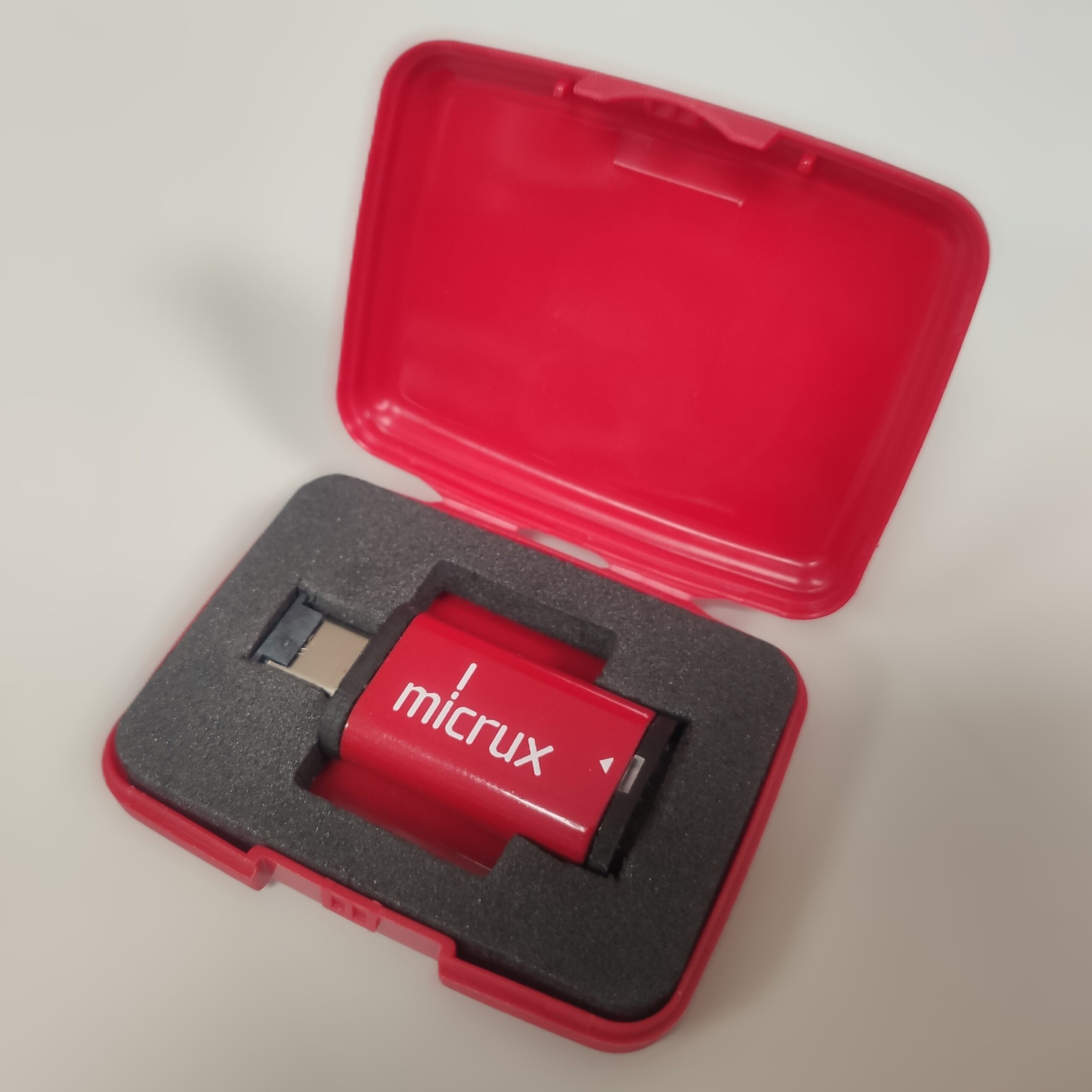

MicruX ECSens is provided with all necessary accessories and software for interfacing with the computer and sensors.
MicruX ECSens includes the most common electroanalytical techniques for voltammetric and amperometric analysis.
AVAILABLE ELECTROCHEMICAL TECHNIQUES
Voltammetry
|
Amperometry
Potentiometry
|
Voltammetric and amperometric methods can be used in BIPOT mode.
TECHNICAL SPECIFICATIONS
| General
|
|
| » Dimensions | 39 x 17 x 9 mm (L x W x H) |
| » Operating modes | Bipotentiostat, potentiostat |
| » LED indicators | Power on, cell on |
| » DC potential range | ± 1.5 V |
| » Compliance voltage | ± 2.65 V |
| » Maximum DC current | ± 5 mA |
|
Potentiostat |
|
| » DC potential resolution | 250 µV |
| » Applied potential accuracy | ≤ 0.1% |
| » Current ranges | 0.25 µA to 12.5 mA (5 ranges) |
| » Current accuracy | ≤ 0.1 % |
| » Measured current resolution | 0.002% of current range (5 pA on 0.25 µA range) |
|
Multi-channel mode |
|

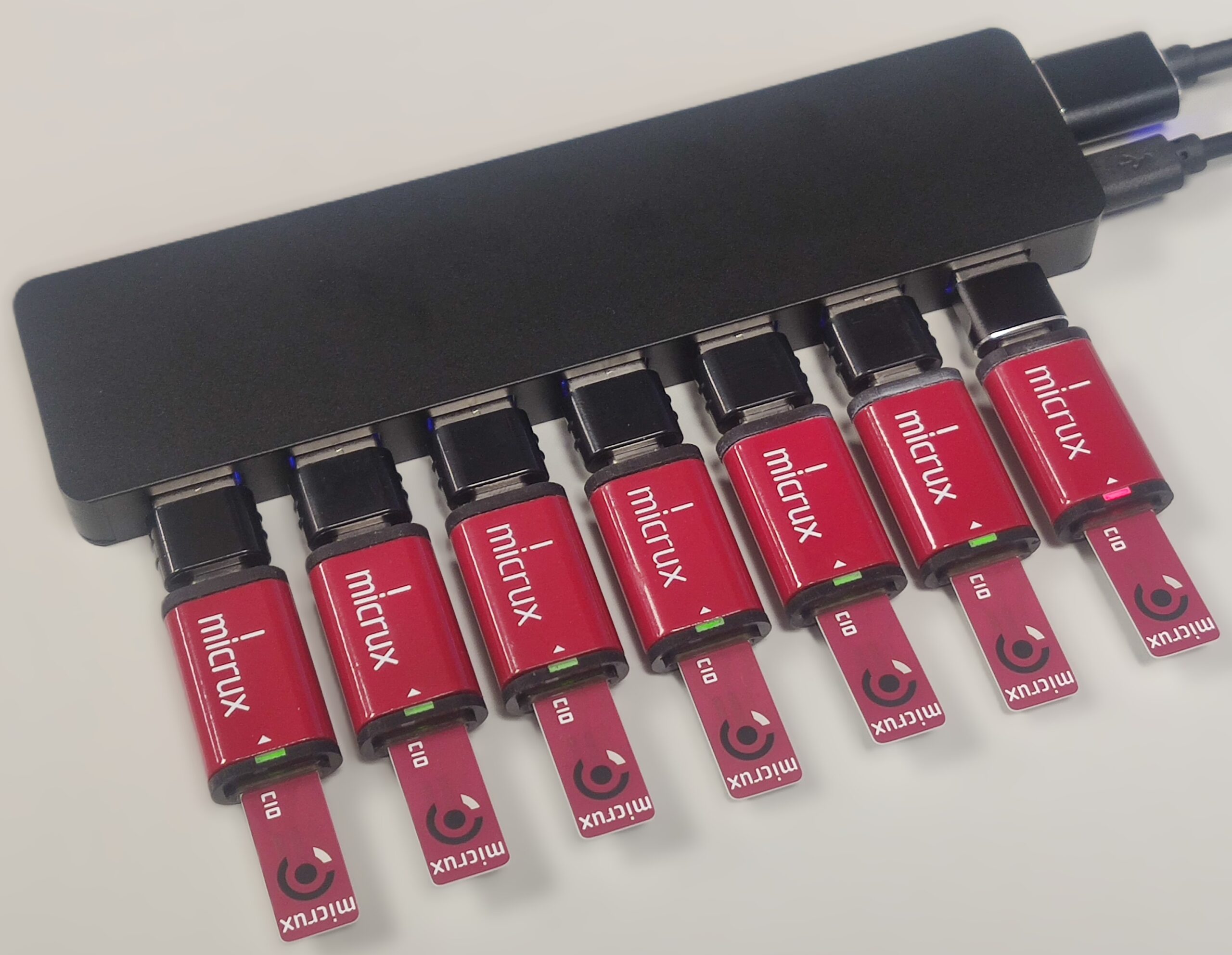

| » Multiplexing | Up to 256 devices (PC software control) |
|
Other specifications |
|
| » Enclosure | Aluminum case |
| » Weight | < 5 g |
| » Power supply | USB (5 VDC / 20 mA max.) |
| » Comm. interface | USB-C |
| » Certifications | CE |
PC SOFTWARE AND ANDROID APP
MicruX EC Manager Lite is the basic graphical user interface for controlling the device from a PC, enabling real-time plotting, storage, and analysis of results. Additionally, the software allows control of multiple devices from the same screen simultaneously, setting up parallel replicates and spools for multiplexed analysis.
MicruX ECSens can also be USB-interfaced with an Android-based smartphone and controlled via the ECSens Smart App, enabling true in-situ analysis. You can try the app by downloading it from Google Play.
